Slide Bait Rigs Explained

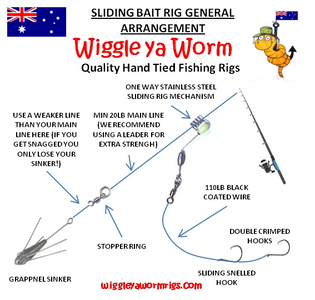

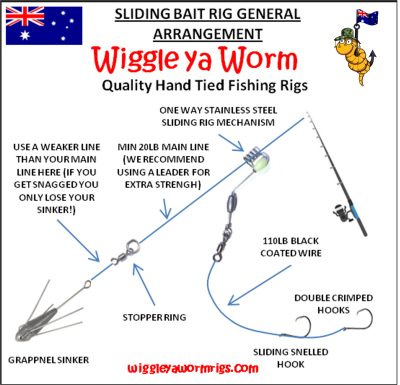

Diagram of a slide bait rig showing the breakaway sinker, weaker sinker line, stopper ring and one-w

Send Large Baits Beyond Casting Range

Slide baiting allows you to cast the sinker and mainline first, then attach a separate baited trace and send it down the mainline using a non-return slide trolley.

Because the bait is not cast with the sinker, large dead baits and livebaits can be placed much further from shore without being damaged, torn from the hooks or restricted by the weight and wind resistance of the bait during the cast.

Once attached, the trolley travels down the tensioned mainline through gravity, water movement and controlled movements of the rod. It continues towards a stopper positioned near the sinker, carrying the bait into the fishing zone.

The system is commonly used from beaches, rock ledges and headlands when targeting sharks, kingfish, mulloway and other large predators holding beyond normal bait-casting range.

This guide explains how the complete system works, how to attach and operate it correctly, the difference between weighted and unweighted trolleys, and how the Wiggle ya Worm Anti Burn-Off Stopper controls trolley movement once the trolley reaches the stopper.

How a Complete Slide Bait System Works

The first part cast into the water consists of:

• The sinker
• A separate section of sinker line
• The stopper
• The mainline

The sinker is tied to one end of the sinker line, while the other end is tied to the stopper. The stopper is then tied directly to the mainline.

Cast this setup into position and allow the sinker to take hold. Place the rod securely in a rod holder and keep the mainline tight.

Next, bait up the hooks and attach the slide trolley to the mainline. Release the trolley and allow gravity and the line angle to carry the bait towards the sinker.

Short, controlled flicks of the rod help move the trolley down the mainline.

The trolley’s one-way design allows it to move towards the sinker while resisting movement back towards the rod.

Continue until the trolley reaches the stopper.

A standalone slide bait trolley is the reusable stainless-steel sliding component. It has a connection point so a fisho can attach a hook trace they have made themselves.

A complete pre-rigged slide bait rig includes the trolley, wire hook trace and hooks already connected and ready to bait up.

Why Slide Baiting Can Reach Further Than Casting a Baited Rig

With an ordinary cast, the sinker must also carry the bait, hooks and trace through the air.

Large baits create considerable wind resistance. They can flap, spin or tumble during the cast, reducing distance and placing extra strain on the bait and hooks.

With slide baiting, the baited trace is not part of the cast. The breakaway sinker leads the cast, with the sinker line, stopper and mainline following behind. There is no large bait or baited trace flapping, spinning or tumbling through the air.

This allows:

More casting energy to carry the sinker forward
Less wind resistance during the cast
A cleaner and more controlled flight
The sinker to reach water beyond normal bait-casting range
Very large baits to be used without attempting to cast them

Once the sinker is firmly anchored, the baited trace is attached to the trolley and worked down the mainline.

This means a large livebait, whole fish or other bulky bait can be sent into water that would be extremely difficult—or impossible—to reach by casting the complete baited rig.

Three Wiggle ya Worm stainless-steel Anti Burn-Off Slide Bait Stoppers shown beside an Australian tw

Why Slide Bait Burn-Offs Happen

All Wiggle ya Worm slide bait trolleys and complete pre-rigged slide bait rigs are supplied with the standard ring stopper traditionally used for slide baiting.

The trolley travels down the mainline until it reaches and rests against the ring. It does not lock to the standard stopper and can be forced back along the mainline under load.

When a fish is hooked, the mainline normally remains tensioned between the rod and the anchored sinker. If the fish swims across the direction of the mainline, the loaded trolley can slide or rub against the tensioned line.

If the fish changes direction or disturbs the sinker, the trolley may travel back up the mainline. As the load changes, the trolley can become tangled around the line, suddenly pull tight or slide rapidly along it under pressure.

The resulting friction can damage or cut the mainline. This failure is known as a burn-off.

The Wiggle ya Worm Anti Burn-Off Stopper is an optional product available separately.

Unlike the supplied standard ring stopper, the Anti Burn-Off Stopper physically engages with and locks onto the trolley. Once connected, the trolley remains locked to the stopper throughout the fight and cannot travel back along the mainline.

This prevents the loaded trolley from sliding or rubbing against the mainline, eliminating the movement responsible for slide-bait burn-offs.

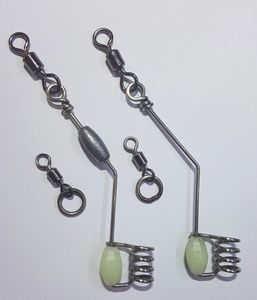

Weighted and unweighted Wiggle ya Worm slide bait trolleys with standard ring stoppers

Choosing a Weighted or Unweighted Slide Trolley

The mainline angle, water movement and type of bait determine whether a weighted or unweighted trolley is the better choice.

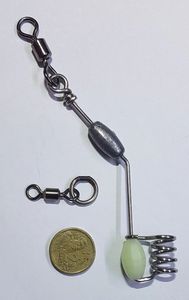

A weighted slide trolley has additional lead built into the trolley. This causes it to hang at a steeper angle on the mainline.

Use a weighted trolley when:

• The mainline angle is shallow
• Rough weather, swell or wave action may push the trolley back
• A livebait may try to swim back up the mainline

On a shallow line angle, the bait must travel down a much flatter slope. The additional weight helps the trolley overcome friction and continue towards the stopper.

The steeper hanging angle also makes it harder for swell, wave action or a livebait to move the trolley back up the mainline.

An unweighted slide trolley is suited to steeper mainline angles and calmer conditions where the trolley and bait can travel down the line without the additional weight.

The Wiggle ya Worm Slide Bait Trolley Pack includes one weighted trolley, one unweighted trolley and a matching standard fully welded stainless-steel stopper for each.

Heavy-duty single-hook slide bait shark rig with weighted trolley and standard ring stopper

Standalone Trolleys and Pre-Rigged Slide Bait Rigs

A standalone slide bait trolley is suited to fishos who prefer to build their own hook traces.

The trolley’s rolling swivel provides the connection point for your chosen:

• Monofilament or wire trace
• Hook size and style
• Single or twin-hook arrangement
• Trace length

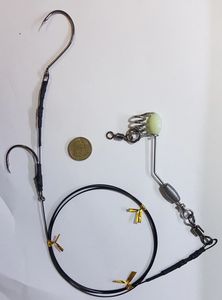

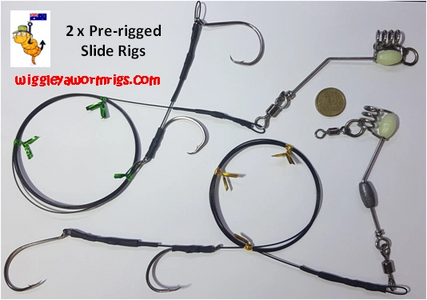

A complete pre-rigged slide bait rig has the trolley, wire hook trace and hooks already connected. Pre-rigged rigs are available with weighted or unweighted trolleys and different hook arrangements.

Twin-hook versions use:

• One fixed bottom hook
• One sliding snelled top hook

The sliding top hook allows the hook spacing to be adjusted to match the length of the bait.

Available twin-hook options include:

• Weighted Slide Bait Rig – Twin 6/0 Circle Hooks / 120lb Stainless Wire

• Weighted Slide Bait Rig – Twin 8/0 Octopus Beak Hooks / 110lb Wire

For larger sharks, the Heavy-Duty Single-Hook Slide Bait Shark Rig uses one large hook rather than an adjustable twin-hook arrangement.

Browse the complete Slide Bait Rig Range to compare the weighted, unweighted, single-hook and twin-hook options.

All standalone trolleys and complete pre-rigged rigs are supplied with the conventional standard ring stopper.

How to Slide Bait

Use the slide bait system in this order:

Cast the sinker, sinker line, stopper and mainline into position.
Allow the sinker to take hold.
Place the rod securely in a rod holder and keep the mainline tight.
Bait up the hooks and attach the slide trolley to the mainline.
Release the trolley and allow it to begin travelling towards the sinker.
Hold the rod vertically and use short flicking movements to work the trolley down the mainline.
Continue until the trolley reaches the standard ring stopper or locks onto an optional Anti Burn-Off Stopper.
Loosen the drag and wait for a bite.

Do not stop working the trolley partway down the mainline. If a fish takes the bait before the trolley reaches the stopper, the loaded trolley can slide or rub against the tensioned mainline and cause a burn-off. Work the trolley all the way down before loosening the drag and leaving the rig to fish.

Because the bait is slid rather than cast, large dead baits remain intact and livebaits avoid the impact of a full cast.

Choosing the Breakaway Sinker and Sinker Line

A breakaway sinker is used because its spikes anchor firmly into the bottom and keep the mainline tight.

This firm anchor is essential. The slide bait trolley cannot travel properly down a moving or slack mainline.

A 168g breakaway sinker suits most situations. A heavier sinker may be needed when:

Rough conditions make it difficult to hold bottom
Strong tidal movement is pushing against the bait
A larger bait creates enough resistance to pull the sinker free

The sinker should be attached using a separate length of weaker line, usually 20–40lb, depending on the sinker and fishing conditions.

The sinker line must:

Be weaker than the mainline and the rest of the slide bait rig
Be strong enough to cast and retrieve the sinker
Break if the sinker becomes firmly snagged

If the sinker catches in rocks or other rough ground during the fight, the weaker sinker line can snap, allowing the fisho to recover the fish and slide bait trolley rather than losing the complete setup.

Choosing the Bait and Hook Arrangement

Slide baiting can carry large livebaits and dead baits that would be difficult to cast without damaging or tearing them from the hooks.

Suitable baits include:

Whole fish baits
Large fish fillets
Whole squid
Large strip baits
Livebaits

Choose the hook size and arrangement to suit the bait rather than forcing a large bait onto hooks that are too small or poorly spaced.

A single-hook trace provides a simple setup when one correctly positioned hook gives suitable coverage.

An adjustable twin-hook trace allows the top hook to be moved to match the length of a longer bait. This helps keep the bait straight while placing both hooks in useful positions.

Whichever arrangement is used:

Match the hook size to the bait
Keep each hook point properly exposed
Secure the bait firmly without restricting a livebait’s movement
Use bait elastic on large or softer baits to reduce twisting, tearing and wash damage as the bait travels down the mainline

The bait must remain securely attached while the trolley is worked down to the stopper and while it fishes in the current.

Where Slide Baiting Works Best

Slide baiting is most useful from land-based locations where large baits need to reach water beyond normal casting range.

Common locations include:

Surf beaches
Rock platforms
Coastal headlands
Deep gutters and channels
Reef edges accessible from shore

The sinker must be able to anchor firmly, and the mainline needs to remain tight so the trolley can travel towards the stopper.

A steeper mainline angle helps the trolley move down more easily. Where the angle is shallow, a weighted trolley can help overcome friction and carry the bait towards the stopper.

The path of the mainline should also remain clear. Contact with rocks, reef or heavy weed can prevent the trolley from travelling properly and may damage the line.

Slide baiting is particularly useful when sharks, kingfish, mulloway and other large predators are holding beyond the distance at which a large bait could normally be cast.

Common Slide Baiting Mistakes

Most slide baiting problems begin before the trolley reaches the stopper.

The breakaway sinker has not anchored properly

If the sinker moves, the mainline cannot remain tight enough for the trolley to travel properly. Use enough sinker weight for the current, swell and bait size.

Allowing the mainline to become slack

The trolley needs a tight mainline to move towards the stopper. Keep the rod secure and maintain steady line tension while working the trolley down.

Leaving the trolley partway down the mainline

A fish taking the bait before the trolley reaches the stopper can place the moving trolley under heavy load against the mainline, creating a serious burn-off risk.

Using the wrong trolley for the conditions

An unweighted trolley may struggle on a shallow mainline angle, in rough weather or with an active livebait. A weighted trolley hangs at a steeper angle and is harder to push back up the line.

Using sinker line that is too strong

The sinker line should be weaker than the mainline and the rest of the rig. If the sinker becomes snagged during the fight, the weaker line can break so the fish and trolley can still be recovered.

Failing to secure the bait properly

Large or soft baits can twist, tear or wash out while travelling down the mainline. Keep the hook points exposed and use bait elastic where needed to hold the bait securely.

Species Commonly Targeted with Slide Bait Rigs

Slide bait rigs are primarily used for large predators that take substantial livebaits, whole fish and other big dead baits.

Common targets include:

Sharks
Kingfish
Mulloway
Large trevally
Rays
Other large coastal predators

The species being targeted determines the hook arrangement, hook size, trace material and overall strength of the rig.

Wire traces are commonly used where sharks or other toothy fish are expected. Mono may be suitable where additional bite protection is unnecessary.

For more species-specific advice, see the:

The bait and likely by-catch should always be considered when choosing between a single-hook rig, an adjustable twin-hook rig and the required trace strength.
